Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
WTSC-10R0K-A3 SINGLE-COIL CIRCLE BASE WIRELESS Signal Transformer	3,494	-	RFQ	Datasheet	WCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	75mOhm Max	-	4A	6A	-	-20°C ~ 85°C	1.38" Dia x 0.13" H (35.0mm x 3.3mm)
WTSC-2R76J-A11 CUSTOM WIRELESS CHARGING COIL Signal Transformer	2,065	-	RFQ	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-
AWCCA-RX350300-101 RX COIL, 1 COIL 25UH Abracon LLC	2,843	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Receiver	1 Coil, 2 Layer	25µH	±10%	170mOhm	85 @ 100kHz	-	-	-	-25°C ~ 85°C	1.38" Dia x 0.12" H (35.0mm x 3.0mm)

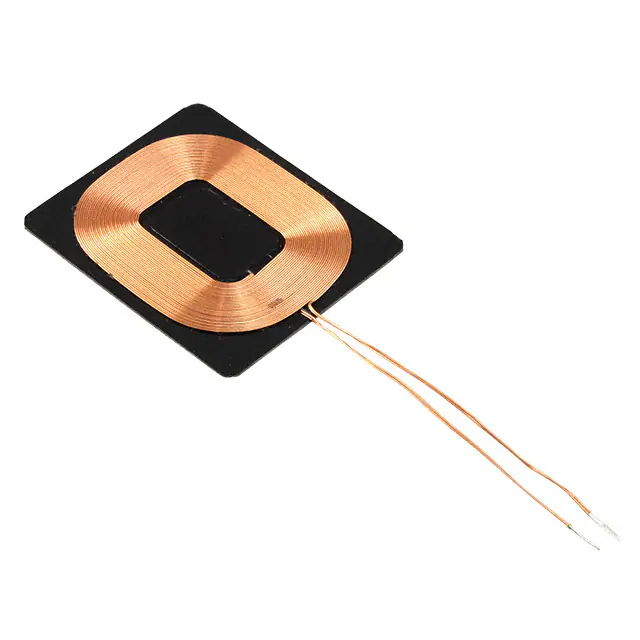

AWCCA-38R32H09-C01-B RX 1 COIL 1 LAYER 11.1UH 2.1A Abracon LLC	3,022	-	RFQ	Datasheet	AWCCA-38R32	Box	Not For New Designs	Receiver	1 Coil, 1 Layer	11.1µH	±10%	260mOhm	22 @ 100kHz	2.1A	12A	11MHz	-25°C ~ 85°C	1.54" L x 1.30" W x 0.05" H (39.0mm x 33.0mm x 1.3mm)
WTSQ-10R0K-MP-A5 SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer	1,579	-	RFQ	Datasheet	WCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	48mOhm Max	-	7A	10A	-	-20°C ~ 85°C	2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm)
AWCCA-RX483205-103 WIRELESS CHARGING COIL Abracon LLC	1,831	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Receiver	1 Coil, 1 Layer	14.5µH	±10%	140mOhm	60 @ 100kHz	-	-	-	-25°C ~ 85°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
SRX324801120KBA RX 1 COIL 2 LAYER 12UH 3000MA Superworld Electronics (S) Pte. Ltd.	2,744	-	RFQ	Datasheet	SRX	Bulk	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	-	3A	-	-	-40°C ~ 85°C	1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm)
SRX2939018R6JB RX 1 COIL 2 LAYER 8.6UH 2400MA Superworld Electronics (S) Pte. Ltd.	3,418	-	RFQ	Datasheet	SRX		Active	Receiver	1 Coil, 1 Layer	8.6µH	±5%	165mOhm Max	-	2.4A	-	-	-40°C ~ 85°C	1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm)
AWCCA-RX404012-102 WIRELESS CHARGING COIL Abracon LLC	2,599	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Receiver	1 Coil, 1 Layer	8µH	±10%	80mOhm	30 @ 125kHz	-	-	-	-25°C ~ 85°C	1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm)
AWCCA-RX514012-F003 WIRELESS CHARGING COIL Abracon LLC	1,739	-	RFQ	Datasheet	AWCCA	Tray	Not For New Designs	Receiver	1 Coil, 1 Layer	8.5µH	±10%	160mOhm	25 @ 125kHz	-	-	-	-25°C ~ 85°C	2.01" L x 1.57" W x 0.05" H (51.0mm x 40.0mm x 1.2mm)
SCT50036R3KA11S TX 1 COIL 1 LAYER 6.3UH 5000MA Superworld Electronics (S) Pte. Ltd.	4,167	-	RFQ	Datasheet	SCT	Bag	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	-	5A	-	-	-40°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
SRX324501140KS RX 1 COIL 1 LAYER 14UH 1200MA Superworld Electronics (S) Pte. Ltd.	4,559	-	RFQ	Datasheet	SRX	Bag	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm Max	-	1.2A	-	-	-40°C ~ 85°C	1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)
IWAS3827ABEB100JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	3,900	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	178mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C	1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm)
AWCCA-RX300200-102 WIRELESS CHARGING COIL Abracon LLC	1,283	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Receiver	1 Coil, 1 Layer	6.3µH	±10%	140mOhm	26 @ 100kHz	-	-	-	-25°C ~ 85°C	1.18" Dia x 0.08" H (30.0mm x 2.0mm)
WTSQ-6R3K-A11 SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer	1,715	-	RFQ	Datasheet	WCC	Box	Active	Transmitter	2 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	-	9A	10A	-	-20°C ~ 85°C	2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm)

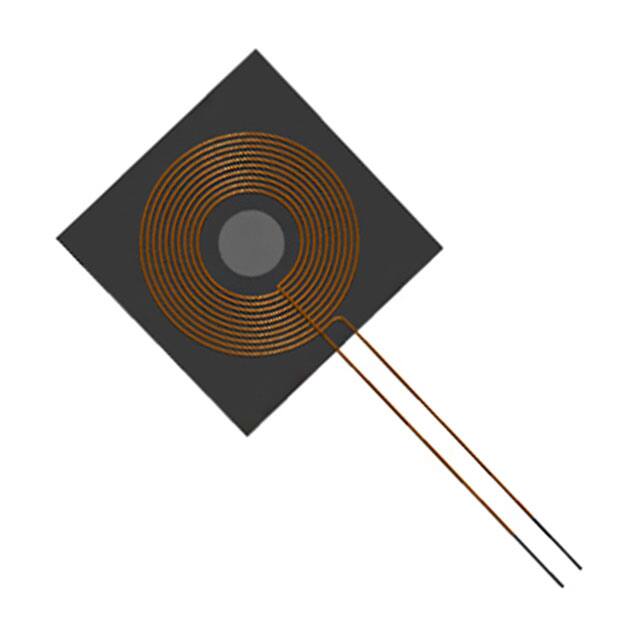

AWCCA-37R37H18-C01-B RECEIVER COIL, 1 COIL, 10UH Abracon LLC	3,728	-	RFQ	Datasheet	AWCCA	Box	Obsolete	Receiver	1 Coil, 1 Layer	10µH	±10%	160mOhm	38 @ 100kHz	-	-	-	-25°C ~ 85°C	1.46" Dia x 0.07" H (37.0mm x 1.8mm)
STX5050036R3KA11S TX 1 COIL 1 LAYER 6.3UH 5000MA Superworld Electronics (S) Pte. Ltd.	2,169	-	RFQ	Datasheet	STX	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	-	5A	-	-	-40°C ~ 85°C	1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm)
IWAS4832AAEB220JF1 IWAS-4832AA-F1 22 5% EB E2 Vishay Dale	4,495	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	22µH	±5%	427mOhm	38 @ 200kHz	-	-	-	-40°C ~ 105°C	1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm)
AWCCA-20R20H08-C01-B RECEIVER COIL, 12UH Abracon LLC	2,290	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver	1 Coil, 1 Layer	12µH	±10%	290mOhm	20 @ 100kHz	-	-	-	-25°C ~ 85°C	0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm)
AWCCA-20N20H20-C01-B TX OR RX COIL, 1 COIL 6.3UH Abracon LLC	4,966	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	150mOhm	34 @ 100kHz	-	-	-	-25°C ~ 85°C	0.79" Dia x 0.08" H (20.0mm x 2.0mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
