Wireless Charging Coils
Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCCA-26R26H08-C01-BRX 1 COIL 1 LAYER 10UH |
4,962 | - |
|
Datasheet | AWCCA | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 320mOhm | 18.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.02" Dia x 0.03" W (26.0mm x 0.8mm) |
|
SCT55048R9KMPA4TX 1 COIL 1 LAYER 8.9UH 6000MA |
4,106 | - |
|
Datasheet | SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|
AWCCA-15N15H06-C01-BTX OR RX COIL, 1 COIL, 14.9UH |
4,911 | - |
|
Datasheet | AWCCA | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 14.9µH | ±10% | 1Ohm | 8.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.59" Dia x 0.02" H (15.0mm x 0.6mm) |
|
WTM-7R1K-A28DOUBLE-COIL WIRELESS CHARGING CO |
4,668 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.1µH | ±10% | 45mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|
|
AWCCA-TX523517-102WIRELESS CHARGING COIL |
3,609 | - |
|
Datasheet | AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 80mOhm | 60 @ 100kHz | - | - | - | -40°C ~ 120°C | 2.05" L x 1.38" W x 0.07" H (52.0mm x 35.0mm x 1.8mm) |
|
1461791001RX 1 COIL 1 LAYER 11.6UH |
3,041 | - |
|
Datasheet | NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 11.6µH | ±2% | 520mOhm | 23 @ 200kHz | - | - | - | - | 1.69" L x 1.22" W x 0.02" H (43.0mm x 31.0mm x 0.5mm) |
|

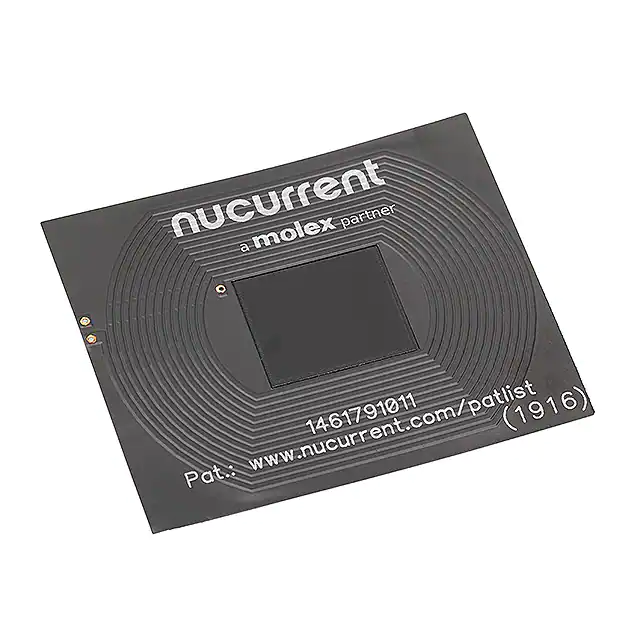

1461791011RX 2 COIL, 1 LYR 9.9UH |
3,378 | - |
|
Datasheet | NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 2 Coil, 1 Layer | 9.9µH | ±2% | 390mOhm | 23 @ 200kHz | - | - | - | - | 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm) |
|
WT505090-10F2-LP-GTX 1 COIL, 1 LYR 6.3UH |
2,766 | - |
|
Datasheet | WT | Tray | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 1.97" Dia x 0.10" H (50.0mm x 2.5mm) |
|
WTM-7R3K-S7DOUBLE-COIL WIRELESS CHARGING CO |
2,698 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.3µH | ±10% | 50mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|

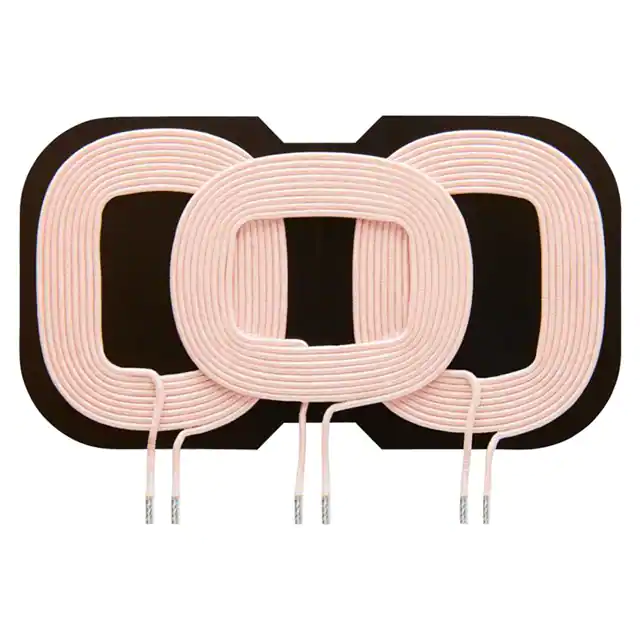

WTM-7R0K-A28MULTI-COIL WIRELESS CHARGING COI |
4,192 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 6.5µH, 7µH | ±10% | 45mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|

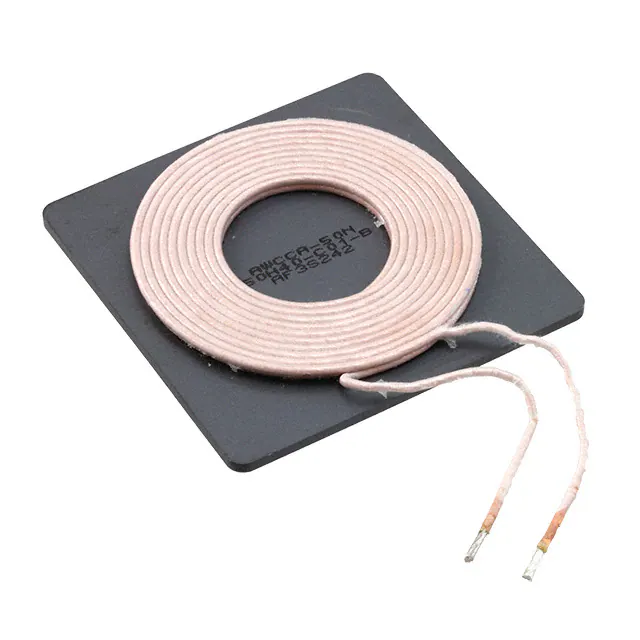

AWCCA-50N50H40-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
3,865 | - |
|
Datasheet | AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 165 @ 100kHz | 5.7A | 27A | 2.9MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|
AWCCA-50N50H40-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11.1A |
1,752 | - |
|
Datasheet | AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 11.1A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|
|
SCT50046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
2,275 | - |
|
Datasheet | SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|
|
AWCCA-TX535315-101WIRELESS CHARGING COIL |
4,167 | - |
|
Datasheet | AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm | 135 @ 125kHz | - | - | - | -40°C ~ 85°C | 2.09" L x 2.09" W x 0.18" H (53.0mm x 53.0mm x 4.5mm) |
|
|
STX5050046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
1,296 | - |
|
Datasheet | STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) |
|
|
STX555504100KMPA2TX 1 COIL 1 LAYER 10UH 6000MA |
3,894 | - |
|
Datasheet | STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|
|
WTM-12R5K-A28WIRELESS CHARGING COIL |
2,576 | - |
|
Datasheet | WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|

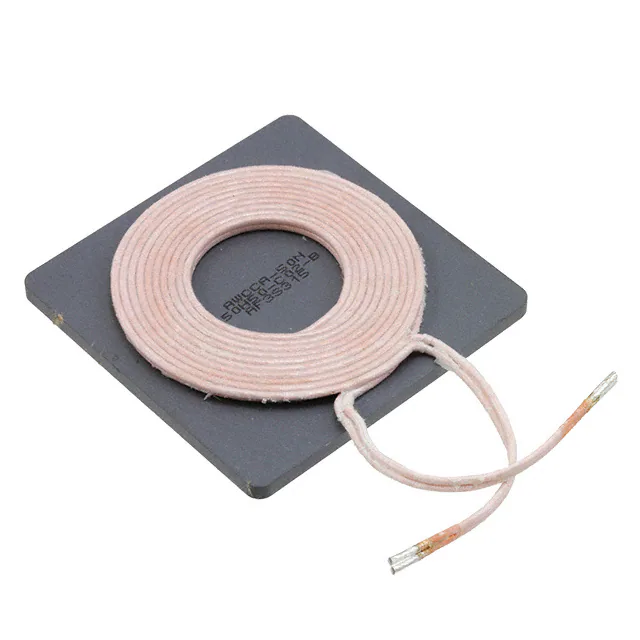

AWCCA-50N50H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
3,382 | - |
|
Datasheet | AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 75 @ 100kHz | 10.6A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
|

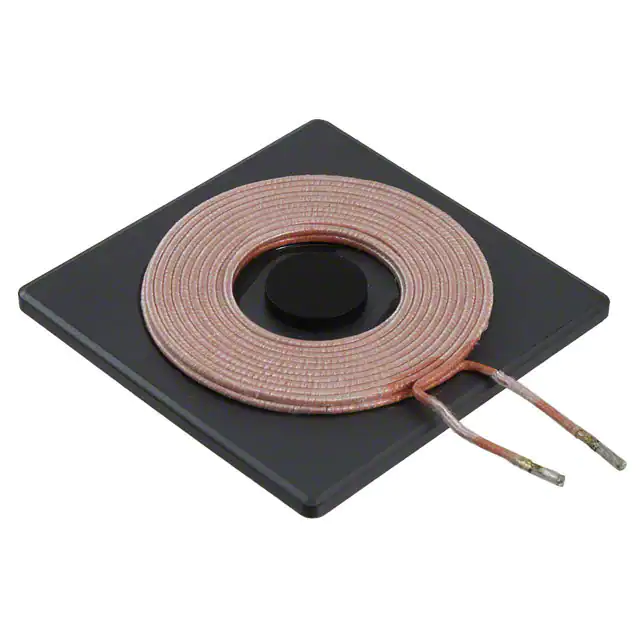

WT525225-20K2-A1-GTX 1 COIL 2 LYR 24UH |
4,182 | - |
|
Datasheet | WT | Tray | Obsolete | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 80 @ 100kHz | - | - | - | -30°C ~ 70°C | 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) |
|
|
WTM-9R8K-A9WIRELESS CHARGING COIL |
1,766 | - |
|
Datasheet | WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH | ±10% | 60mOhm, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
Wireless Charging Coils FAQ
What Wireless Charging Coils components can I source from EGOO?
You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
