Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
RWC5050AK060-500 TX 1 COIL 1 LAYER 6.5UH Laird-Signal Integrity Products	1,399	-	RFQ	Datasheet	RWC	Box	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	50mOhm Max	70 @ 100kHz	-	-	-	-40°C ~ 125°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
RWC5353EJ240-501 TX 1 COIL 2 LAYER 24UH 5.5A Laird-Signal Integrity Products	4,076	-	RFQ	Datasheet	RWC	Box	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	75mOhm Max	90 @ 100kHz	5.5A	10A	-	-40°C ~ 125°C	2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm)
WT-505060-20K2-A10-G TX 1 COIL 2 LYR 24UH TDK Corporation	2,655	-	RFQ	Datasheet	WT	Tray	Obsolete	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	80 @ 100kHz	-	-	-	-30°C ~ 70°C	1.97" Dia x 0.13" H (50.0mm x 3.4mm)
QPR-0108 RECEIVER QST	3,885	-	RFQ	Datasheet	-	Box	Active	Receiver	1 Coil, 1 Layer	8.5µH	±10%	130mOhm	20 @ 100kHz	-	-	-	-	1.97" L x 1.57" W x 0.03" H (50.0mm x 40.0mm x 0.8mm)
QPT-0036A 10W TRANSMITTER MODULE QST	4,430	-	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	3.8µH	±10%	-	-	-	-	-	-	2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm)
QPT-0023 10W TRANSMITTER MODULE QST	2,425	-	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	3.8µH	±10%	-	-	-	-	-	-	2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm)
SWC10056AA120-500 TRANSMITTER 3 COIL 1 LAYER Laird-Signal Integrity Products	4,650	-	RFQ	Datasheet	SWC	Box	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	65mOhm Max	90 @ 100kHz	-	-	-	-40°C ~ 125°C	3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm)
QPR-6011 RECEIVER QST	1,097	-	RFQ	Datasheet	-	Bulk	Active	Receiver	1 Coil, 1 Layer	5µH	±10%	130mOhm	10 @ 100kHz	-	-	-	-	2.01" L x 1.57" W x 0.09" H (51.0mm x 40.0mm x 2.2mm)
WT505090-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	3,098	-	RFQ	Datasheet	WT	Tray	Not For New Designs	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-	1.97" Dia x 0.15" H (50.0mm x 3.8mm)
WR483245-15F5-G RX 1 COIL 1 LYR 13UH TDK Corporation	3,729	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	13µH	-	200mOhm	-	-	-	-	-	1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)

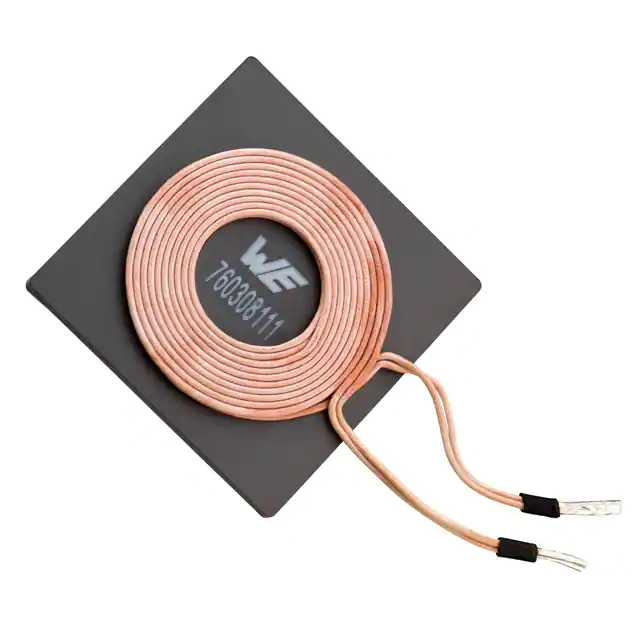

760308111 TX 1 COIL 2 LYR BIFIL 6.3UH 13A Würth Elektronik	4,354	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	24mOhm Max	80 @ 125kHz	13A	16A	20MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
IWTX5050CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,581	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
IWAS4832AEEB120KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	1,845	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	33 @ 100kHz	3A	-	-	-40°C ~ 85°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
WTSC-6R3K-A11B SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	3,482	-	RFQ	Datasheet	WCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
WR202020-18M8-G RX 1 COIL, 1 LYR 9.9UH TDK Corporation	2,874	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	9.9µH	-	520mOhm	-	-	-	-	-	0.79" Dia x 0.02" H (20.0mm x 0.6mm)
WRSR-11R0K-16 WIRELESE CHARGE COIL 11.0UH 2.5A Signal Transformer	2,924	-	RFQ	Datasheet	WRSR	Bulk	Active	Receiver	1 Coil, 1 Layer	11µH	±10%	200mOhm Max	30 @ 125kHz	2.5A	4A	-	-25°C ~ 105°C	1.34" L x 1.05" W x 0.04" H (34.0mm x 26.7mm x 0.9mm)
WR303050-12F5-ID RX 1 COIL 1 LYR 8.23UH TDK Corporation	4,999	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	8.23µH	±5%	260mOhm	-	-	-	-	-	1.18" L x 1.17" W x 0.03" H (30.0mm x 29.6mm x 0.9mm)
760308105214 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,235	-	RFQ	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-
760308102213 RX 1 COIL 1 LAYER 7.9UH 1.7A Würth Elektronik	4,959	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	7.9µH	±10%	330mOhm Max	18 @ 125kHz	1.7A	4A	21MHz	-20°C ~ 105°C	1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
WT505090-20K2-A10-G TX 1 COIL 2 LYR 24UH TDK Corporation	3,222	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	-	100mOhm	-	-	-	-	-	1.97" Dia x 0.15" H (50.0mm x 3.8mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
